Lock bolts are an essential component of safes. What are the different methods of driving these bolts, and how do high-end safes differ from common ones? Let’s explore these methods in detail.
Common Safe Mechanisms
Eccentric Disk Drive Mechanism

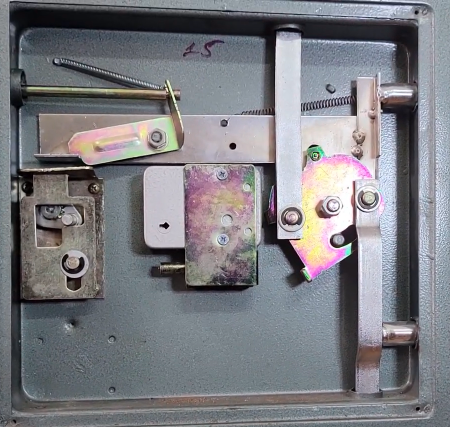

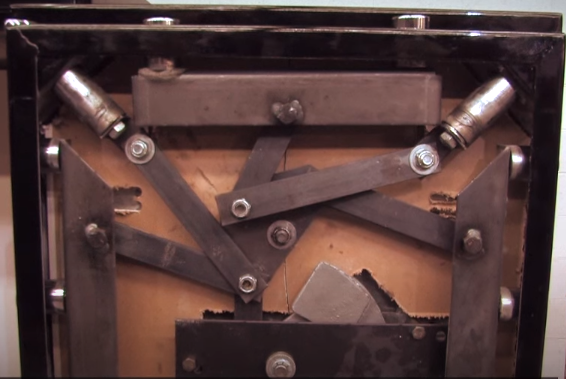

Figure 1: Eagle Safe Driven by Eccentric Disk
Figure 1 shows an Eagle safe driven by an eccentric disk, which controls two vertical bolts combined with a horizontal bar-driven bolt. As a mid-range imported safe, it features a relocking mechanism that activates when drilled. This drive system requires a certain amount of play in the bolt guides because the bolt tail moves along an arc while the bolt body travels in a straight line, or the tail-bolt linkage point must have sufficient radial play. A spring always pulls the bolt into the door frame, and an automatic latch mechanism confirms the door is fully closed to engage the bolt. Overall, this is a cost-effective and easy-to-manufacture method that does not require complex machinery and tolerates high deviations.
Counteracting Forceful Impacts
To counteract forceful impacts on the bolt head, two mechanisms handle this: a key lock with a blade preventing the busbar from moving backward horizontally and a combination lock with a blade preventing the dial shaft from rotating. Striking the dial with a heavy hammer can cause the central disk to rotate in reverse, damaging both lock blades and potentially allowing the entire bolt to be removed without prying the door.
Radial Archimedean Groove Drive Mechanism

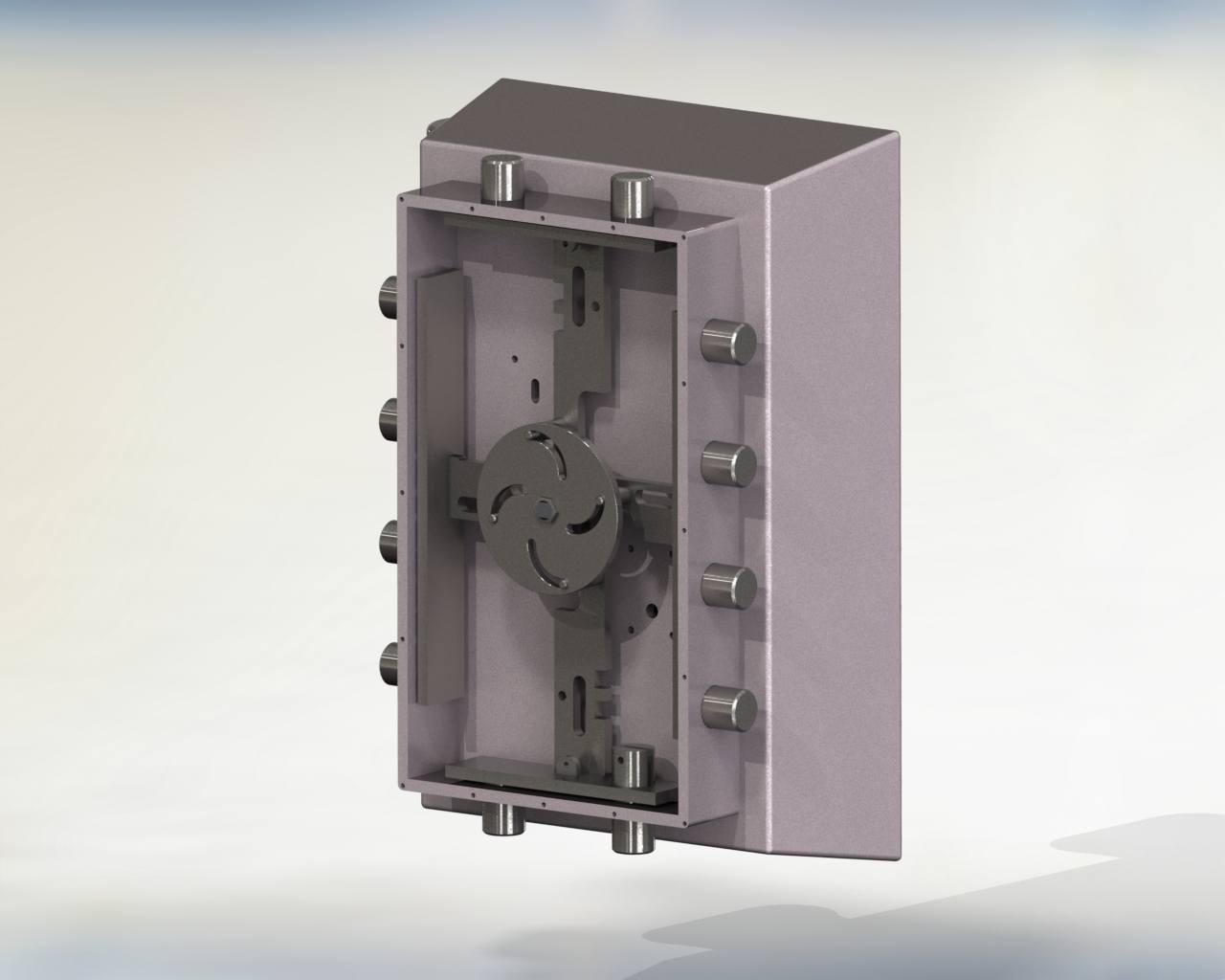

Figure 2: Radial Archimedean Groove Bolt Drive and Overload Safety Groove on Its Dial
Next, let’s consider a radial Archimedean groove drive mechanism. A round disk with Archimedean grooves drives four radial busbars. Although the Archimedean groove provides smooth, even lifting, the friction between the groove and the bolt is considerable. This can be mitigated by improving mechanical quality to make the dial easier to turn. This method is relatively expensive because it requires a milling machine or wire-cutting machine to process the grooves.
In this design, the dial is still linked to the central disk, but a deep groove cuts across the dial shaft. If a strong impact causes a large moment, the shaft will break at the safety groove, preventing damage to the drive system and removing the safe’s bolt.
Low-Gear Drive System
Figure 3: Low-Gear Drive System
For mid-range safes with multiple bolts, low-gear drive systems are preferred. These systems are durable yet cost-effective. This drive system requires high mechanical processing quality to ensure precise movement. They offer great force resistance and durability, but the long kinematic chain results in significant friction loss, making the dial heavy to operate with both hands.
High-End Safe Mechanisms
Rack-and-Pinion Drive System
Figure 4: Rack-and-Pinion Bolt Drive
In high-end small and medium-sized safes, rack-and-pinion drive systems provide a satisfying user experience and meet many drive system requirements. U.S. Patent No. 5094483, granted in 1992, shows a rack-and-pinion drive system for safe bolts. This system does not decelerate, so it is not self-locking; the bolt must be locked against impact using a separate method.
Planetary Gear/Rack-and-Pinion Drives
Large locking systems used in banks employ planetary gear/rack-and-pinion drives to create a unique characteristic: resistance to reverse driving through its deceleration. The drive path from the dial to the lock bolt is a decelerated path. Although it requires a long stroke, the drive is light due to the large diameter of the dial, which has a high rotational inertia, making operation easy. The reverse path, when struck at the bolt head, is an accelerated path. In this case, the input moment increases significantly, but the force direction nearly passes through the center of the central gear, preventing it from rotating. This drive method does not require reverse motion locking; it is achieved by the deceleration of the drive chain itself. This is considered the pinnacle of European safe design, a purely mechanical marvel.

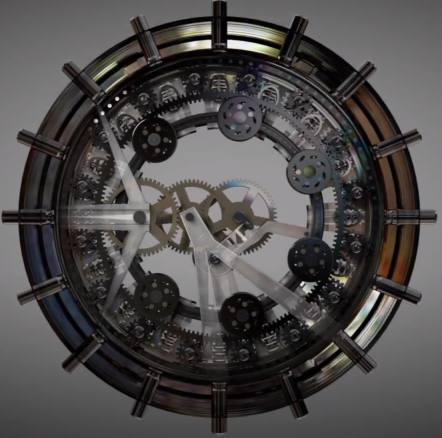

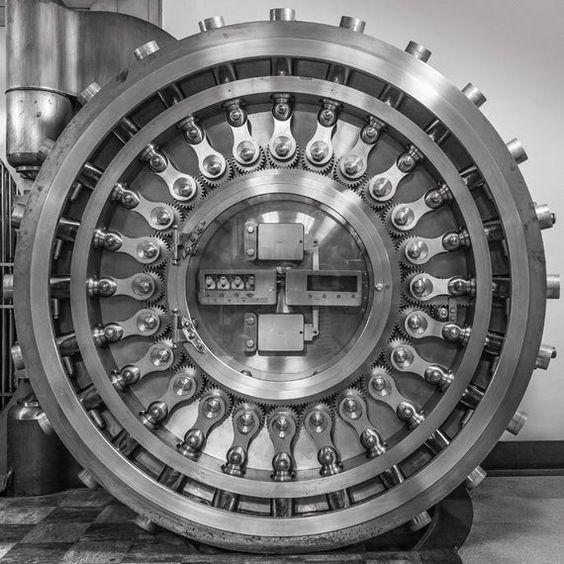

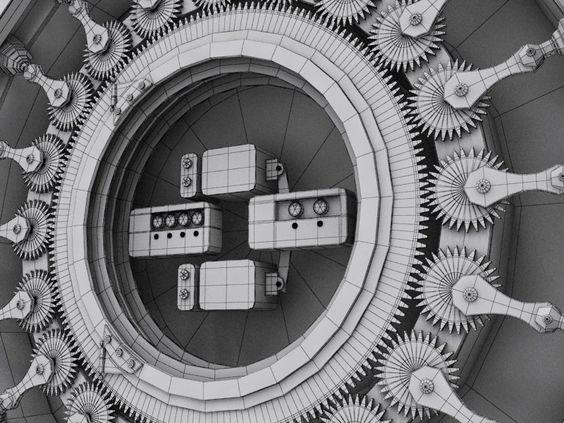

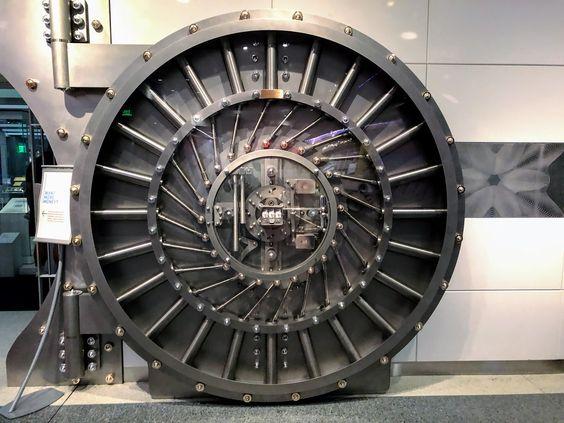

Figure 5: Strong Deceleration Planetary Gear Drive Chain on a Round Door
Off-Center Planetary Gear Drive

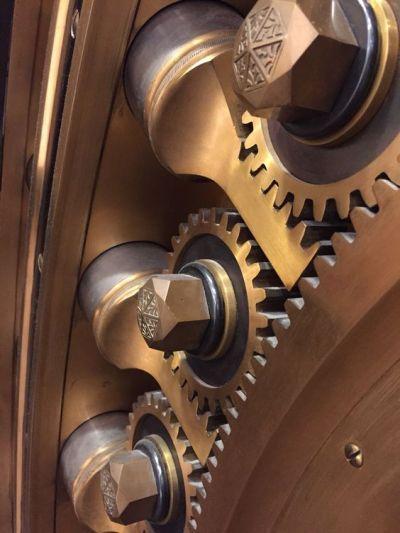

Figure 6: Off-Center Planetary Gear Drive
Another costly variant of this drive method links the bolt to an off-center position on the planetary gear. The bolt travel equals twice the eccentricity. Due to the high value of the components and the precise manufacturing and assembly required, this drive system is very expensive.
Crank-Slider Mechanism

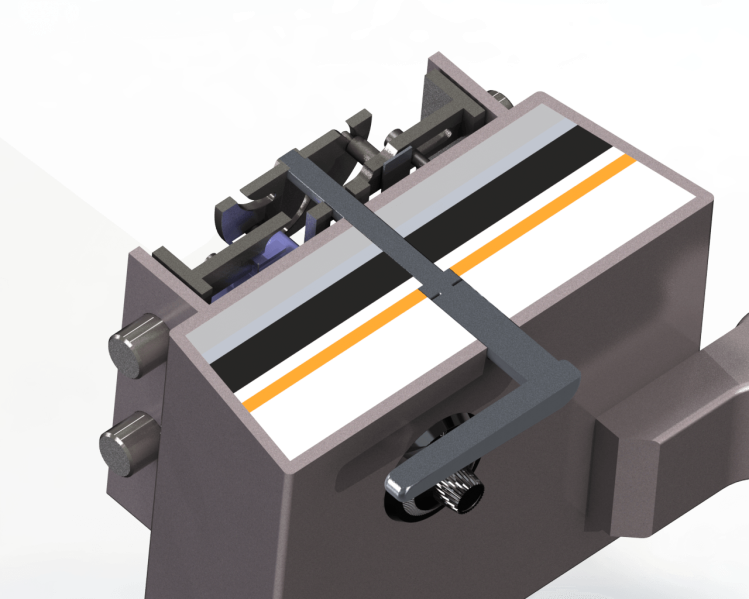

Figure 7: Crank-Slider Bolt Drive Mechanism
To reduce costs, another method used for these doors is the crank-slider mechanism. Scaling down these vault door designs to tabletop size creates a mechanical masterpiece, like a high-tech fidget toy for men. RDIP also offers small safes using crank-slider and rack-and-pinion drive systems, providing an excellent opening and closing experience with fully guided ball-bearing sliders, of course, accompanied by our proprietary locks.
Conclusion
Key Differences Between High-End and Common Safe Mechanisms
The primary differences between high-end and common safes lie in the complexity and quality of their bolt drive mechanisms. Common safes typically use simpler, cost-effective methods like the eccentric disk and low-gear drive systems. These methods, while functional, may require more manual effort and offer less resistance to forceful impacts.
High-end safes, on the other hand, employ advanced mechanisms like rack-and-pinion systems and planetary gears, which provide smoother operation, greater resistance to attacks, and higher overall security. These systems are often more expensive due to the precision manufacturing required but offer significant benefits in terms of security and ease of use.
Recommendations for Safe Users
When choosing a safe, consider the type of bolt drive mechanism that best meets your security needs and budget. For high-security applications, investing in a safe with advanced drive mechanisms like the planetary gear or rack-and-pinion system is advisable. For general use, mid-range safes with eccentric disk or low-gear drive systems may be sufficient.
Understanding these mechanisms can help you make an informed decision and ensure that your valuables are well-protected.
